Sirkulator Koaksial 300 hingga 1850MHz TH3538XN Tipe N / TH3538XS Tipe SMA

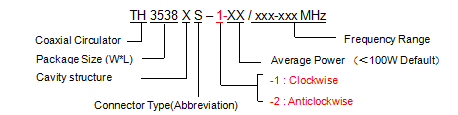

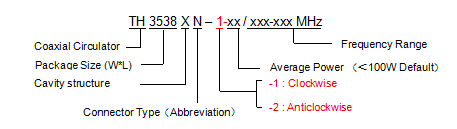

Contoh Pesanan
Jenis Konektor
| SMAOpsi Konektor Tipe | Opsi Konektor Tipe N | ||||
| Pelabuhan 1 | Pelabuhan 2 | Asingkatan | Pelabuhan 1 | Pelabuhan 2 | Asingkatan |
| SMA-F | SMA-F | S | N-F | N-F | N |
| SMA-F | SMA-M | SKJ | N-F | N-M | NKJ |
| SMA-M | SMA-F | SJK | N-M | N-F | NJK |
| SMA-M | SMA-M | SJ | N-M | N-M | NJ |
| SMAOpsi Konektor Tipe | Opsi Konektor Tipe N | ||||
| Pelabuhan 1 | Pelabuhan 2 | Asingkatan | Pelabuhan 1 | Pelabuhan 2 | Asingkatan |
| SMA-F | SMA-F | S | N-F | N-F | N |
| SMA-F | SMA-M | SKJ | N-F | N-M | NKJ |
| SMA-M | SMA-F | SJK | N-M | N-F | NJK |
| SMA-M | SMA-M | SJ | N-M | N-M | NJ |
Spesifikasi Dasar
| Impedansi | 50 Ω |
| Kekuatan Maju | 100W |
| Jenis Konektor | N-K |
| Ukuran(mm) | 35.0*38.0*15.0 |
| Suhu Operasi | -30~+70℃ |
| Suhu penyimpanan | -50~+90 ℃ |
| Impedansi | 50 Ω |
| Kekuatan Maju | 100W |
| Jenis Konektor | SMA-K |
| Ukuran(mm) | 35.0*38.0*15.0 |
| Suhu Operasi | -30~+70℃ |
| Suhu penyimpanan | -50~+90 ℃ |
Spesifikasi
| Nomor Model (X=1: →Searah jarum jam) (X=2: ←Berlawanan arah jarum jam) | Rentang Frekuensi MHz | IL. dB (maks) | Isolasi dB (min) | VSWR (maks) | KEKUATAN W |
| TH3538XN-X/300-32MHz | 300-320 | 0,60 | 20.0 | 1,25 | 100 |
| TH3538XN-X/300-350MHz | 300-350 | 0,80 | 18.0 | 1.35 | 100 |
| TH3538XN-X/309-339MHz | 309-339 | 0,50 | 20.0 | 1,25 | 100 |
| TH3538XN-X/310-340MHz | 310-340 | 0,50 | 20.0 | 1,25 | 100 |
| TH3538XN-X/320-340MHz | 320-340 | 0,45 | 20.0 | 1,25 | 100 |
| TH3538XN-X/350-370MHz | 350-370 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/350-400MHz | 350-400 | 0,50 | 19.0 | 1,25 | 100 |
| TH3538XN-X/361-366MHz | 361-366 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/370-420MHz | 370-420 | 0,50 | 19.0 | 1,25 | 100 |
| TH3538XN-X/380-410MHz | 380-410 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/380-460MHz | 380-460 | 0,50 | 18.0 | 1.30 | 100 |
| TH3538XN-X/390-410MHz | 390-410 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/400-410MHz | 400-410 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/400-440MHz | 400-440 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/400-450MHz | 400-450 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/400-470MHz | 400-470 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/400-500MHz | 400-500 | 0,50 | 19.0 | 1,25 | 100 |
| TH3538XN-X/410-460MHz | 410-460 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/413-419MHz | 413-419 | 0,25 | 25.0 | 1.15 | 100 |
| TH3538XN-X/419-425MHz | 419-425 | 0,25 | 25.0 | 1.15 | 100 |
| TH3538XN-X/420-450MHz | 420-450 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/420-480MHz | 420-480 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/425-475MHz | 425-475 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/429-439MHz | 429-439 | 0,30 | 25.0 | 1.15 | 100 |
| TH3538XN-X/430-440MHz | 430-440 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/430-460MHz | 430-460 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/430-470MHz | 430-470 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/433-457MHz | 433-457 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/435-437MHz | 435-437 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/440-470MHz | 440-470 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/447-499MHz | 447-499 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/450-456MHz | 450-456 | 0,25 | 25.0 | 1.15 | 100 |
| TH3538XN-X/450-500MHz | 450-500 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/450-520MHz | 450-520 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/450-550MHz | 450-550 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/455-465MHz | 455-465 | 0,25 | 25.0 | 1.15 | 100 |
| TH3538XN-X/459-486MHz | 459-486 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/470-490MHz | 470-490 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/470-530MHz | 470-530 | 0,40 | 20.0 | 1.20 | 100 |
| TH3538XN-X/470-570MHz | 470-570 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/470-610MHz | 470-610 | 0,60 | 18.0 | 1.30 | 100 |
| TH3538XN-X/475-525MHz | 475-525 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/495-516MHz | 495-516 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/500-600MHz | 500-600 | 0,40 | 20.0 | 1.20 | 100 |
| TH3538XN-X/500-700MHz | 500-700 | 0,70 | 17.5 | 1.35 | 100 |
| TH3538XN-X/570-670MHz | 570-670 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/580-720MHz | 580-720 | 0,40 | 19.0 | 1,25 | 100 |
| TH3538XN-X/600-700MHz | 600-700 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/600-800MHz | 600-800 | 0,50 | 18.0 | 1.30 | 100 |
| TH3538XN-X/670-770MHz | 670-770 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/690-860MHz | 690-860 | 0,40 | 20.0 | 1.20 | 100 |
| TH3538XN-X/700-800MHz | 700-800 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/700-862MHz | 700-862 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/700-900MHz | 700-900 | 0,50 | 18.0 | 1.30 | 100 |
| TH3538XN-X/703-862MHz | Telepon 703-862 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/750-950MHz | 750-950 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/770-860MHz | 770-860 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/800-1000MHz | 800-1000 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/854-921MHz | Telepon 854-921 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/860-872MHz | Nomor telepon 860-872 | 0,25 | 25.0 | 1.15 | 100 |
| TH3538XN-X/862-960MHz | Telepon 862-960 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/900-930MHz | 900-930 | 0,25 | 25.0 | 1.15 | 100 |
| TH3538XN-X/900-1000MHz | 900-1000 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/900-1100MHz | 900-1100 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/950-1000MHz | 950-1000 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/950-1250MHz | 950-1250 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/950-1280MHz | 950-1280 | 0,50 | 20.0 | 1,25 | 100 |
| TH3538XN-X/950-1450MHz | 950-1450 | 0,60 | 17.0 | 1.35 | 100 |
| TH3538XN-X/955-1220MHz | 955-1220 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/960-1160MHz | 960-1160 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/960-1215MHz | 960-1215 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/960-1260MHz | 960-1260 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/1000-1100MHz | 1000-1100 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XN-X/1000-1500MHz | 1000-1500 | 0,60 | 17.0 | 1.35 | 100 |
| TH3538XN-X/1015-1045MHz | Tahun 1015-1045 | 0,25 | 23.0 | 1.15 | 100 |
| TH3538XN-X/1020-1040MHz | Tahun 1020-1040 | 0,25 | 25.0 | 1.15 | 100 |
| TH3538XN-X/1020-1100MHz | Tahun 1020-1100 | 0,25 | 23.0 | 1.20 | 100 |
| TH3538XN-X/1022-1540MHz | 1022-1540 | 0,60 | 17.0 | 1.35 | 100 |
| TH3538XN-X/1030-1039MHz | 1030-1039 | 0,20 | 25.0 | 1.15 | 100 |
| TH3538XN-X/1030-1090MHz | 1030-1090 | 0,25 | 23.0 | 1.20 | 100 |
| TH3538XN-X/1100-1600MHz | Jam 11.00-16.00 | 0,50 | 17.0 | 1.35 | 100 |
| TH3538XN-X/1100-1650MHz | 1100-1650 | 0,60 | 17.0 | 1.35 | 100 |
| TH3538XN-X/1100-1699MHz | Tahun 1100-1699 | 0,65 | 16.0 | 1.40 | 100 |
| TH3538XN-X/1160-1610MHz | Tahun 1160-1610 | 500. | 18.0 | 1.30 | 100 |
| TH3538XN-X/1200-1400MHz | 1200-1400 | 0,30 | 20.0 | 1,25 | 100 |
| TH3538XN-X/1200-1500MHz | 1200-1500 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XN-X/1285-1315MHz | Tahun 1285-1315 | 0,20 | 23.0 | 1.20 | 100 |
| TH3538XN-X/1290-1310MHz | Tahun 1290-1310 | 0,20 | 25.0 | 1.15 | 100 |
| TH3538XN-X/1300-1700MHz | 1300-1700 | 0,40 | 20.0 | 1.20 | 100 |
| TH3538XN-X/1350-1850MHz | Tahun 1350-1850 | 0,50 | 19.0 | 1,25 | 100 |
| Nomor Model (X=1: →Searah jarum jam) (X=2: ←Berlawanan arah jarum jam) | Rentang Frekuensi MHz | IL. dB (maks) | Isolasi dB (min) | VSWR (maks) | KEKUATAN W |
| TH3538XS-X/300-320MHz | 300-320 | 0,60 | 20.0 | 1,25 | 100 |
| TH3538XS-X/300-350MHz | 300-350 | 0,80 | 18.0 | 1.35 | 100 |
| TH3538XS-X/309-339MHz | 309-339 | 0,50 | 20.0 | 1,25 | 100 |
| TH3538XS-X/310-340MHz | 310-340 | 0,50 | 20.0 | 1,25 | 100 |
| TH3538XS-X/320-340MHz | 320-340 | 0,45 | 20.0 | 1,25 | 100 |
| TH3538XS-X/350-370MHz | 350-370 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/350-400MHz | 350-400 | 0,50 | 19.0 | 1,25 | 100 |
| TH3538XS-X/361-366MHz | 361-366 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/370-420MHz | 370-420 | 0,50 | 19.0 | 1,25 | 100 |
| TH3538XS-X/380-410MHz | 380-410 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/380-460MHz | 380-460 | 0,50 | 18.0 | 1.30 | 100 |
| TH3538XS-X/390-410MHz | 390-410 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/400-410MHz | 400-410 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/400-440MHz | 400-440 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/400-450MHz | 400-450 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/400-470MHz | 400-470 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/400-470MHz | 400-470 | 0,50 | 19.0 | 1,25 | 100 |
| TH3538XS-X/410-460MHz | 410-460 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/413-419MHz | 413-419 | 0,25 | 25.0 | 1.15 | 100 |
| TH3538XS-X/419-425MHz | 419-425 | 0,25 | 25.0 | 1.15 | 100 |
| TH3538XS-X/420-450MHz | 420-450 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/420-480MHz | 420-480 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/425-475MHz | 425-475 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/429-439MHz | 429-439 | 0,30 | 25.0 | 1.15 | 100 |
| TH3538XS-X/430-440MHz | 430-440 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/430-460MHz | 430-460 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/430-470MHz | 430-470 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/433-457MHz | 433-457 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/435-437MHz | 435-437 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/440-470MHz | 440-470 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/447-499MHz | 447-499 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/450-456MHz | 450-456 | 0,25 | 25.0 | 1.15 | 100 |
| TH3538XS-X/450-500MHz | 450-500 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/450-520MHz | 450-520 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/450-550MHz | 450-550 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/455-465MHz | 455-465 | 0,25 | 25.0 | 1.15 | 100 |
| TH3538XS-X/459-486MHz | 459-486 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/470-490MHz | 470-490 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/470-530MHz | 470-530 | 0,40 | 20.0 | 1.20 | 100 |
| TH3538XS-X/470-570MHz | 470-570 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/470-610MHz | 470-610 | 0,50 | 18.0 | 1.30 | 100 |
| TH3538XS-X/475-525MHz | 475-525 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/495-516MHz | 495-516 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/500-600MHz | 500-600 | 0,40 | 20.0 | 1.20 | 100 |
| TH3538XS-X/500-700MHz | 500-700 | 0,70 | 17.5 | 1.35 | 100 |
| TH3538XS-X/570-670MHz | 570-670 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/580-720MHz | 580-720 | 0,40 | 19.0 | 1,25 | 100 |
| TH3538XS-X/600-700MHz | 600-700 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/600-800MHz | 600-800 | 0,50 | 18.0 | 1.30 | 100 |
| TH3538XS-X/670-770MHz | 670-770 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/690-860MHz | 690-860 | 0,40 | 20.0 | 1.20 | 100 |
| TH3538XS-X/700-800MHz | 700-800 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/700-862MHz | 700-862 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/700-900MHz | 700-900 | 0,50 | 18.0 | 1.30 | 100 |
| TH3538XS-X/703-862MHz | Telepon 703-862 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/750-950MHz | 750-950 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/770-860MHz | 770-860 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/800-1000MHz | 800-1000 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/854-921MHz | Telepon 854-921 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/860-872MHz | Nomor telepon 860-872 | 0,25 | 25.0 | 1.15 | 100 |
| TH3538XS-X/862-960MHz | Telepon 862-960 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/900-930MHz | 900-930 | 0,25 | 25.0 | 1.15 | 100 |
| TH3538XS-X/900-1000MHz | 900-1000 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/900-1100MHz | 900-1100 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/950-1000MHz | 950-1000 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/950-1250MHz | 950-1250 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/950-1280MHz | 950-1280 | 0,50 | 20.0 | 1,25 | 100 |
| TH3538XS-X/950-1450MHz | 950-1450 | 0,60 | 17.0 | 1.35 | 100 |
| TH3538XS-X/955-1220MHz | 955-1220 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/960-1160MHz | 960-1160 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/960-1215MHz | 960-1215 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/960-1260MHz | 960-1260 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/1000-1100MHz | 1000-1100 | 0,30 | 23.0 | 1.20 | 100 |
| TH3538XS-X/1000-1500MHz | 1000-1500 | 0,60 | 17.0 | 1.35 | 100 |
| TH3538XS-X/1015-1045MHz | Tahun 1015-1045 | 0,25 | 23.0 | 1.15 | 100 |
| TH3538XS-X/1020-1040MHz | Tahun 1020-1040 | 0,25 | 25.0 | 1.15 | 100 |
| TH3538XS-X/1020-1100MHz | Tahun 1020-1100 | 0,25 | 23.0 | 1.20 | 100 |
| TH3538XS-X/1022-1540MHz | 1022-1540 | 0,60 | 17.0 | 1.35 | 100 |
| TH3538XS-X/1030-1039MHz | 1030-1039 | 0,20 | 25.0 | 1.15 | 100 |
| TH3538XS-X/1030-1090MHz | 1030-1090 | 0,25 | 23.0 | 1.20 | 100 |
| TH3538XS-X/1100-1600MHz | Jam 11.00-16.00 | 0,50 | 17.0 | 1.35 | 100 |
| TH3538XS-X/1100-1650MHz | 1100-1650 | 0,60 | 17.0 | 1.35 | 100 |
| TH3538XS-X/1100-1699MHz | Tahun 1100-1699 | 0,60 | 16.0 | 1.40 | 100 |
| TH3538XS-X/1160-1610MHz | Tahun 1160-1610 | 0,50 | 18.0 | 1.30 | 100 |
| TH3538XS-X/1200-1400MHz | 1200-1400 | 0,30 | 20.0 | 1,25 | 100 |
| TH3538XS-X/1200-1500MHz | 1200-1500 | 0,40 | 20.0 | 1,25 | 100 |
| TH3538XS-X/1285-1315MHz | Tahun 1285-1315 | 0,20 | 23.0 | 1.20 | 100 |
| TH3538XS-X/1290-1310MHz | Tahun 1290-1310 | 0,20 | 25.0 | 1.15 | 100 |
| TH3538XS-X/1300-1700MHz | 1300-1700 | 0,40 | 20.0 | 1.20 | 100 |
| TH3538XS-X/1350-1850MHz | Tahun 1350-1850 | 0,50 | 19.0 | 1,25 | 100 |
Instruksi:
1, TKonektor sirkulator dapat dipilih SMA, N, kepala jantan dan betina dapat digunakan oleh pengguna;
2, TSirkulator hanya menyediakan daya melalui, yang menunjukkan bahwa transmisi ke antena dan antena ke penerima adalah melalui daya;
3, OHanya beberapa frekuensi umum dalam tabel yang dapat diproduksi sesuai dengan kebutuhan pengguna;
4, IJika Anda tidak menemukan apa yang Anda cari, silakan hubungi kami!
